Item # S6552
SUNRUNNER 66 HS/UV BLACK BULK
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $0.08418 |
| EA | 100 | $0.07983 |
| EA | 200 | $0.07717 |
| EA | 500 | $0.07468 |
| EA | 1,000 | $0.07123 |
| EA | 2,000 | $0.06809 |
| EA | 5,000 | $0.06614 |
| EA | 10,000 | $0.06431 |
Add to Cart to Request Quote for Larger Qtys
Click image to enlarge
Item # S6552
SUNRUNNER 66 HS/UV BLACK BULK
- UM: EA
- Weight: 0.0085
- Brand: HEYCO PRODUCTS

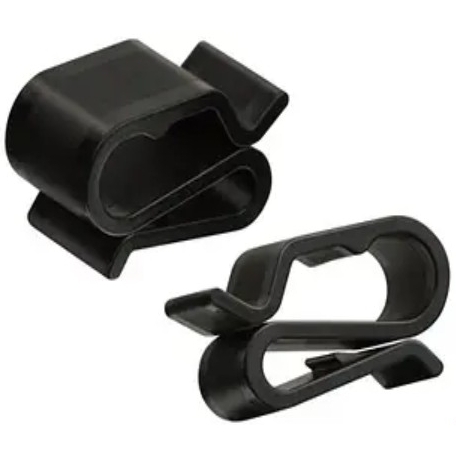

HEYClip™ SunRunner© Nylon Cable Clips for 1-2 Cables
Double-Compression, Straight-thru Design
- Low cost option to popular SunRunner Wire Management Clip.
- Route 2 PV wires in one clip.
- Slide on to the edge of a PV Solar panel.

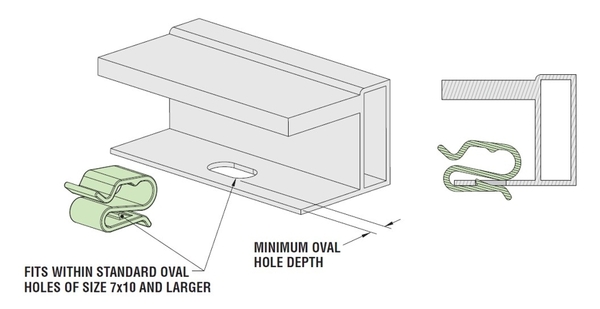

- Lock in place in any 7x10 or larger oval wire management mounting hole.
- Made of rugged Nylon 6/6, F1-rated for outdoor use.
Specifications
| Description | SunRunner HS/UV Nylon Black |
| Packaging | Bulk |
| Material | Heat Stable, UV Rated Nylon 6/6 |
| Panel Thickness Clamping Range (in) | .05 - .12 |
| Panel Thickness Clamping Range (mm) | 1.3 - 3.1 |
| Minimum Panel Flange Depth (in) | .72 |
| Minimum Panel Flange Depth (mm) | 18.3 |
| Minimum Oval Hole Depth (in) | .28 |
| Minimum Oval Hole Depth (mm) | 7.1 |
| Wire Dia. Range Maximum (2) Wires (in) | .200 - .315 each cable |
| Wire Dia. Range Maximum (2) Wires (mm) | 5.0 - 8.0 each cable |
| Footprint A x B (in) | .91 x .50 |
| Footprint A x B (mm) | 23.1 x 12.7 |
| C: Overall Height (in) | .39 |
| C: Overall Height (mm) | 9.9 |
